USD 27.36
PNP N/O proximity sensor for T-slots. IP67/IP68 rated with 0.3m M8 cable. Oil-resistant and suitable for energy chains.

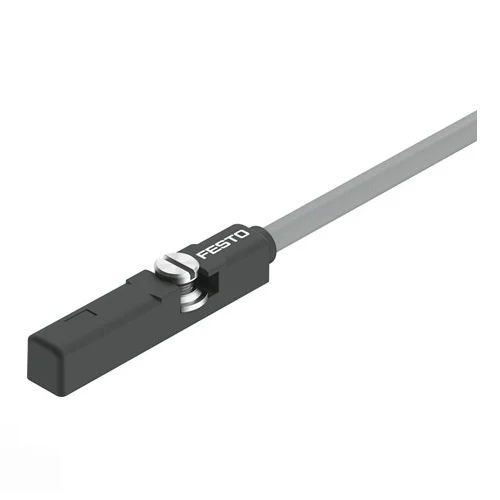

The Festo 8150174 (SDBT-MSB-1L-PU-K-0.3-M8) is a magneto-resistive proximity sensor designed for T-slot pneumatic cylinders. Featuring a PNP switching output with a 3-wire normally open (N/O) contact, it provides precise and contactless binary position sensing for industrial automation tasks. It is equipped with a 0.3m polyurethane (PUR) cable ending in an M8 plug (3-pin, A-coded) and boasts a robust design with IP67 and IP68 ratings for extreme industrial environments.
| Parameter | Value |
|---|---|
| Measuring Principle | Magneto-resistive [1.6] |
| Switching Output | PNP, N/O contact, 3-wire |
| Operating Voltage | 10 V ... 30 V DC |
| Max Output Current | 100 mA |
| Max Switching Frequency | 480 Hz |
| Voltage Drop | ≤0.5 V |
| Switching Time (On/Off) | ≤2.5 ms |
| Repetition Accuracy | 0.2 mm |
| Degree of Protection | IP67, IP68 (IEC 60529) |
| Operating Temperature | -20 °C ... 70 °C |
| Cable Specifications | 0.3 m PUR, suitable for energy chains |
| Electrical Connection | M8x1 plug, 3-pin, A-coded |
| Housing Material | PC (Polycarbonate) |
Usingthesensor'sfast≤2.5msswitchingtimeand480Hzmaximumfrequencytoprovideexactlimitsensingonhigh-speedpneumaticlinearorsemi-rotarydrives[1.6].
Prevents mechanical collisions and delays in high-throughput automation assembly machines by guaranteeing immediate PLC feedback when the actuator reaches its programmed target position.
Deploying the sensor in washdown zones, automated CNC loading stations, or areas with moderate moisture ingress due to its extreme waterproof ratings and oil resistance.
Eliminates sensor shorting or degradation caused by coolant mists or washdowns, ensuring reliable binary position detection for automated pneumatic clamps.
Integrating the proximity switch on pneumatic actuators mounted to dynamic moving gantries, routing its 0.3m pigtail to a distribution block inside a flexible cable carrier.
Solves cable fatigue and internal wire breakage issues typically found in continuous-flex applications thanks to the energy-chain-certified PUR sheath.
