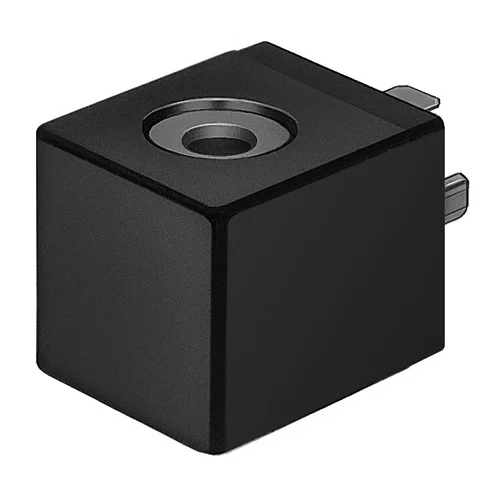

Name: Festo MSN1G-24DC-OD Solenoid Coil - INOSAKI
SKU: Festo-123060
Price: 13.50 USD
Availability: InStock

Technical Overview

High-performance 24V DC solenoid coil featuring a 100% duty cycle, 2.5W power consumption, 10ms minimum pick-up time, and robust IP65-rated PA housing.

Key Features

100% continuous duty cycle for high-demand, non-stop automated processes.
Integrated 3-pin Type A electrical connection complying with DIN EN 175301-803 standards.
Highly reliable 10 ms minimum pick-up time for fast-acting spool actuation.
IP65 protection rating ensures robust dust sealing and resistance to light water jets.
Optimized electrical contacts made of steel with high-conductivity copper winding.

Technical Specification Matrix

Parameter	Value
Operating Voltage	24 V DC
Power Consumption	2.5 W
Duty Cycle	100%
Minimum Pick-up Time	10 ms
Degree of Protection	IP65
Electrical Connection	3-pin, Form A, to DIN EN 175301-803
Mounting Type	Clamped (via retaining clamp)
Housing Material	PA (Polyamide)
Winding Material	Copper
Electrical Contact Material	Steel
Permissible Voltage Fluctuations	-15% / +10%
Operating Temperature	-10 °C to 50 °C
LABS (PWIS) Conformity	VDMA24364-C1-L
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	4.5 x 3.2 x 3.2

Industrial Applications

1. Continuous Automated Packaging Assembly Lines

In high-speed packaging plants, valves must cycle hundreds of times per minute. The Festo MSN1G-24DC-OD solenoid coil's 100% duty cycle allows continuous, uninterrupted operation without thermal degradation, while its 10ms pick-up speed guarantees precise synchronization.

Problem Solved

Eliminates premature coil burnout and overheating shutdowns on continuous automated production lines, ensuring constant machine uptime.

100% duty cycle10ms pick-up timeContinuous operationPneumatic actuation

2. Dusty and Humid Material Handling Systems

Material conveying systems in mineral processing or agriculture expose control panels to excessive dust and occasional moisture. With its IP65 environmental rating and robust PA housing, this coil maintains secure electrical contacts without risk of ingress-related short circuits.

Problem Solved

Prevents electrical shorts and equipment failure due to particulate and water ingress in demanding ambient conditions.

IP65 protectionPolyamide housingDIN EN 175301-803Environmental sealing

3. Energy-Efficient Battery-Backed Automation Cabinets

Remote control panels or mobile material handling machinery with battery power supplies require low consumption. Consuming only 2.5 W, this solenoid coil minimizes power drain, and its wide voltage tolerance (-15%/+10%) protects against system voltage drops.

Problem Solved

Lowers overall energy footprint of the control cabinet and maintains stable actuation during battery voltage fluctuations.

2.5 W power consumptionPermissible voltage fluctuationsEnergy efficiency24 V DC
