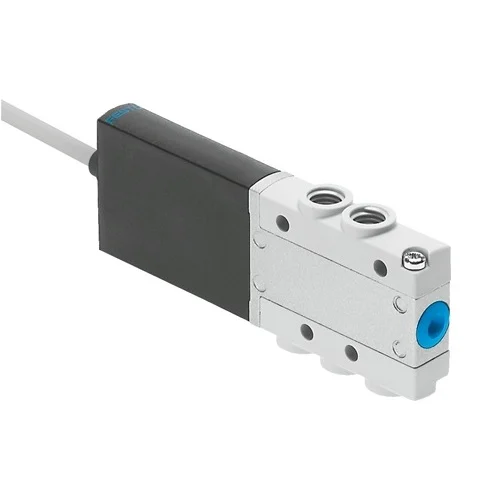

5/2 monostable pneumatic valve, 24 V DC, 90 l/min, IP55, M7 ports, 10 mm width, spring return.
Industrial pneumatic solenoid valve for 5/2-way monostable directional control. This Festo MHE2 series unit uses electric actuation, a direct pilot, pressure-relieved poppet construction, and spring return. Verified operating envelope includes 24 V DC coil supply, 90 l/min nominal flow, M7 pneumatic ports, IP55 protection, and an operating pressure range from -0.9 bar to 8 bar. The valve is designed for compact manifold or individual mounting with 10 mm construction width and 14 mm grid dimension.
| Parameter | Value |
|---|---|
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Construction width | 10 mm |
| Standard nominal flow rate | 90 l/min |
| Pneumatic working port | M7 |
| Operating voltage | 24 V DC |
| Operating pressure | -0.09 MPa ... 0.8 MPa |
| Operating pressure | -0.9 bar ... 8 bar |
| Operating pressure | -13.05 psi ... 116 psi |
| Design | Pressure-relieved poppet valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP55 |
| Nominal size | 2 mm |
| Grid dimension | 14 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Optional |
| Manual override | Non-detenting |
| Type of piloting | Direct |
| Flow direction | Non-reversible |
| Reverse polarity protection | Bipolar |
| Additional functions | Spark arresting, holding current reduction, protective circuit |
| Max. switching frequency | 300 Hz |
| Switching time off | 1.7 ms |
| Switching time on | 1.9 ms |
| Duty cycle | 100% |
| Characteristic coil data | 24 V DC: low-current phase 1.625 W, high-current phase 6.5 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Media temperature | -5 °C ... 60 °C |
| Ambient temperature | -5 °C ... 60 °C |
| Product weight | 70 g |
| Electrical connection | Cable |
| Cable length | 2.5 m |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | M7 |
| Pneumatic connection, port 2 | M7 |
| Pneumatic connection, port 3 | M7 |
| Pneumatic connection, port 4 | M7 |
| Pneumatic connection, port 5 | M7 |
| Material seals | HNBR / NBR |
| Material housing | Die-cast zinc, coated |
| Material cable sheath | PUR |
| Material screws | Galvanised steel |
Fits small 5/2 directional control loops where a 24 V DC electrically actuated valve must reverse a double-acting cylinder in a narrow 10 mm envelope.
Provides fast, compact reversal control with verified 90 l/min flow and spring return.
Useful in tight valve banks or modular actuator stations where 14 mm grid spacing, through-hole mounting, and M7 ports support dense pneumatic layouts.
Enables high packing density without sacrificing accessible pneumatic porting or serviceability.
Suitable for enclosed automation equipment that needs IP55 protection, moderate corrosion resistance, and cable-connected 24 V DC control in normal factory environments.
Maintains directional control in demanding general industrial enclosures while resisting ingress and routine contamination.
