USD 80.60
Electrically actuated directional control valve with internal pilot air and mechanical spring reset. Supports 2–10 bar pressure with 32mm construction width and G1/4 ports.

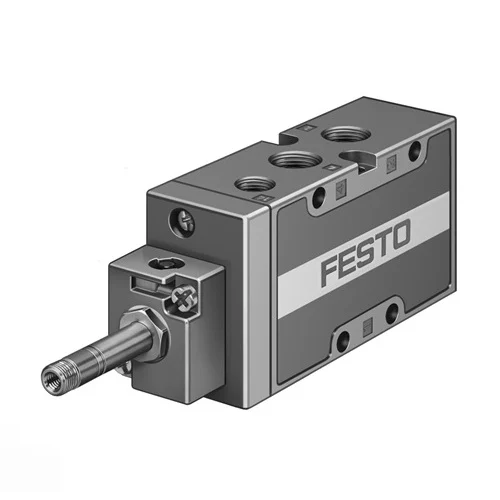

The Festo MFH-5-1/4-B (part number 15901) is a 5/2-way monostable, electrically actuated directional control valve. Engineered with a durable poppet seat design and internal pilot air supply, it delivers a robust standard nominal flow rate of 1300 l/min. The valve supports an operating pressure range of 2 to 10 bar (0.2 to 1 MPa) and features a mechanical spring reset. Designed for industrial pneumatic automation, it utilizes G1/4 pneumatic ports and requires a separately ordered F-type solenoid coil for electrical connection.
| Parameter | Value |
|---|---|
| Valve Function | 5/2-way, monostable |
| Type of Actuation | Electrical |
| Standard Nominal Flow Rate | 1300 l/min |
| Operating Pressure | 2 to 10 bar (0.2 to 1 MPa) |
| Pneumatic Working Port | G1/4 |
| Construction Width | 32 mm |
| Design Structure | Poppet Seat |
| Type of Reset | Mechanical spring |
| Nominal Size | 7 mm |
| Grid Dimension | 33 mm |
| Product Weight | 300 g |
| Electrical Connection | Via F coil (ordered separately) |
| Pilot Exhaust Air Port 84 | M5 |
| Type of Piloting | Pilot actuated |
Controlling the extension and retraction of double-acting pneumatic cylinders in heavy-duty manufacturing and assembly lines.
Requires reliable, rapid actuation of large cylinders where high flow rates are necessary. The 1300 l/min flow capability ensures quick response times and powerful cylinder movement.
Piloting clamping, sealing, and forming mechanisms in automated packaging equipment.
Consistent pressure delivery and dependable repetitive switching are necessary to prevent process jams. The 2-10 bar operating pressure and robust poppet seat design ensure long-lasting durability.
Actuating diverter gates and high-speed sorting arms on conveyor and logistics systems.
Conveyor sorters require extremely fast reaction times to route products correctly. The valve's high standard nominal flow (1300 l/min) provides the high-speed pneumatic impulse needed for accurate mechanical sorting.
