High-efficiency 1 µm fine filter with G1/4 port. Delivers 650 l/min flow at 2-12 bar. Features borosilicate fiber, auto drain, and zinc die-cast housing.

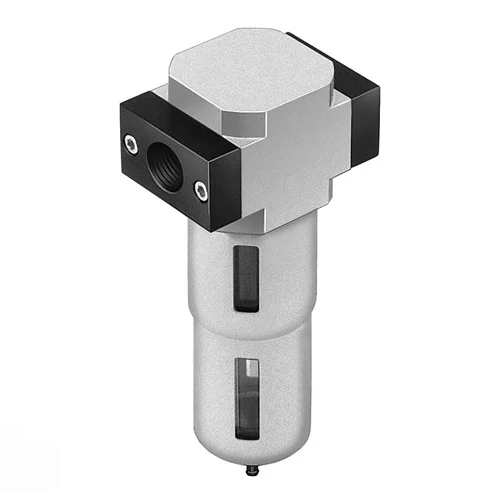

The Festo LFMB-1/4-D-MINI-A (Part Number: 162635) is a highly efficient 1 µm fine pneumatic filter from the D-Series Mini range. Engineered with a borosilicate fiber filter element, it achieves a 99.99% filtration efficiency, effectively removing oil aerosols and solid particles to meet ISO 8573-1:2010 [5:7:3] output air purity standards. The unit features G1/4 female threaded ports and handles a maximum standard flow rate of 650 l/min within an operating pressure range of 2 to 12 bar. Designed for reduced maintenance, it includes a fully automatic condensate drain (22 cm³ capacity). The filter is constructed with a rugged zinc die-cast housing, a polycarbonate (PC) bowl, and a protective metal bowl guard, making it ideal for demanding industrial and automation environments.
| Parameter | Value |
|---|---|
| Series | D-Series |
| Size | Mini (40 mm grid dimension) |
| Pneumatic Connection | G1/4 |
| Filtration Grade | 1 µm |
| Filter Efficiency | 99.99 % |
| Maximum Standard Flow Rate | 650 l/min |
| Operating Pressure | 2 bar ... 12 bar |
| Condensate Drain | Fully automatic |
| Max. Condensate Volume | 22 cm³ |
| Residual Oil Content | 0.5 mg/m³ |
| Filter Material | Borosilicate fiber |
| Housing Material | Zinc die-cast |
| Bowl Material | Polycarbonate (PC) with Metal Bowl Guard |
| Ambient / Medium Temperature | 1.5 °C ... 60 °C |
| Mounting Position | Vertical +/- 5° |
Provides ultra-clean air (ISO 8573-1:2010 [5:7:3] class) for sensitive robotic actuators and pneumatic control valves.
Prevents premature wear, seal degradation, and valve stiction caused by micron-sized dust and oil aerosols in high-speed automated processes.
Effectively removes impurities and automatically drains condensate in continuous packaging equipment operating at pressures up to 12 bar.
Eliminates the risk of moisture and oil contamination reaching the final product while drastically reducing manual maintenance via the fully automatic drain.
Delivers tightly filtered air to precision measuring instruments, gauges, and pneumatic sensors within factory setups.
Keeps delicate measurement orifices and sensing elements free from microscopic dust and residual oil (down to 0.5 mg/m³), which could otherwise cause false readings or blockages.
