Name: Festo FRC-1/4-D-7-MINI-A-MPA Pneumatic FRL Service Unit - INOSAKI
SKU: Festo-8002345
Price: 160.70 USD
Availability: InStock

Technical Overview

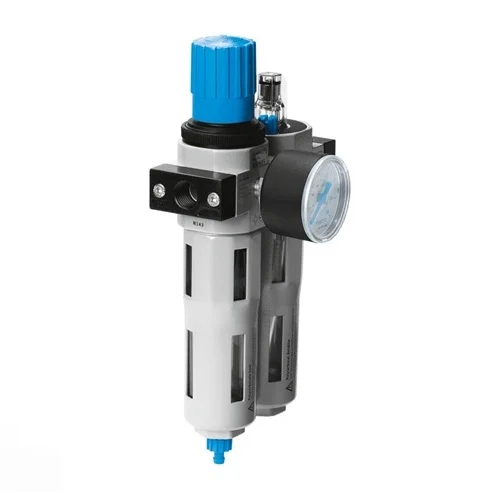

The Festo FRC-1/4-D-7-MINI-A-MPA (Part Number: 8002345) is a high-performance Mini D-series pneumatic service unit combining a filter, pressure regulator, and proportional mist lubricator into a single compact housing. Engineered with G1/4 port connections, it offers a robust 40 µm filtration grade, a standard nominal flow rate of 1,300 l/min, and a highly precise pressure regulation range of 0.5 to 7 bar. Designed for seamless industrial automation integration, this unit features a fully automatic condensate drain and comes equipped with a pressure gauge. Built with a durable zinc die-cast housing and a polycarbonate bowl protected by a metal basket guard, the FRC-1/4-D-7-MINI-A-MPA ensures maximum reliability for compressed air preparation across a wide temperature range (-10°C to 60°C).

Key Features

Integrated filter, pressure regulator, and proportional mist lubricator in one space-saving unit [1.3].
Fully automatic condensate drain for maintenance-free continuous moisture removal.
Equipped with a 40 µm filter element for effective particulate and contaminant capture.
Zinc die-cast housing with a polycarbonate bowl and metal basket guard for enhanced industrial durability.
Built-in analog pressure gauge for accurate and continuous pressure monitoring.
Lockable rotary knob with detent for secure, tamper-resistant pressure adjustment.
Supports supply pressures from 2 to 12 bar, with an accurately regulated output range of 0.5 to 7 bar.

Technical Specification Matrix

Parameter	Value
Pneumatic Connection	G1/4
Grade of Filtration	40 µm
Operating Pressure	2 to 12 bar (0.2 to 1.2 MPa)
Pressure Regulation Range	0.5 to 7 bar
Standard Nominal Flow Rate	1,300 l/min
Max. Condensate Volume	22 cm³
Condensate Drain	Fully automatic
Ambient / Medium Temperature	-10 °C to +60 °C
Housing Material	Zinc die-casting
Product Weight	660 g

Industrial Applications

1. Automated Packaging Machinery Air Preparation

Packaging systems utilize pneumatic cylinders, grippers, and suction cups which require clean, consistently regulated, and lubricated compressed air to prevent premature wear and ensure precision movement.

Problem Solved

Unregulated or moisture-laden air can cause packaging actuators to stutter or degrade due to friction and internal rust. The Festo FRC-1/4-D-7-MINI-A-MPA solves this by providing precise 0.5 to 7 bar regulation, fully automatic moisture drainage, and proportional mist lubrication, ensuring continuous and smooth high-cycle pneumatic operations.

Pneumatic Actuator ControlAutomatic Condensate DrainProportional Mist Lubricator40 µm Filtration

2. Pneumatic Tool Lines in Automotive Assembly

Air-powered torque wrenches and assembly tools require dedicated point-of-use FRL (Filter, Regulator, Lubricator) units to maintain optimal torque delivery and significantly extend tool service life.

Problem Solved

Pneumatic tools running on dry, unfiltered air suffer from internal wear and erratic torque output. This FRL unit delivers up to 1,300 l/min of clean, perfectly lubricated air at precisely 7 bar, protecting tools with its 40 µm filter and ensuring steady torque via stable pressure regulation.

Point-of-Use FRL1,300 l/min Flow RatePressure RegulationZinc Die-Cast Housing

3. Material Handling & Conveyor Sorting Systems

Pneumatic diverters and pushers in material handling rely on rapid, responsive actuation that can be heavily compromised by pressure drops or condensation buildup in long factory air lines.

Problem Solved

Excess condensation in factory air lines can pool at diverter valves, causing sluggish sorting response. The FRC-1/4-D-7-MINI-A-MPA features a fully automatic condensate drain and a durable polycarbonate bowl with a metal guard, continuously purging moisture while sustaining the 1,300 l/min flow necessary for rapid multi-valve pneumatic sorting.

Condensate PurgeG1/4 PortPneumatic Diverter ValveFRL Assembly
