Double-acting flat pneumatic cylinder, 12 mm bore, 1–200 mm stroke, M5 port, proximity switch sensing, anodized aluminum construction.

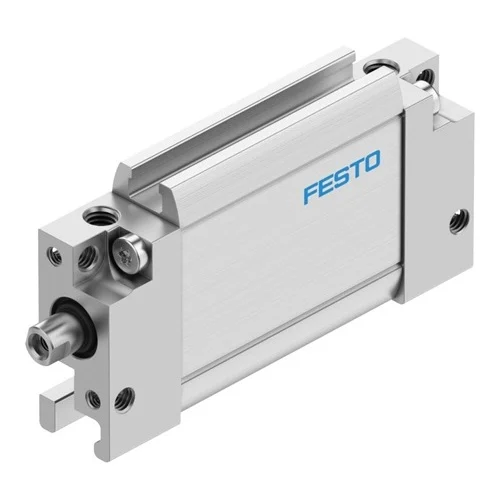

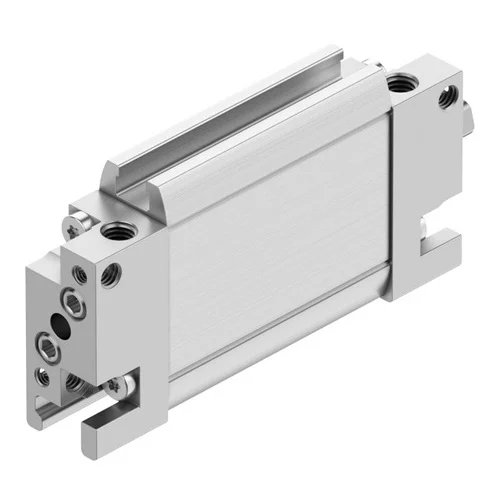

Flat pneumatic cylinder from Festo, type DZF-12-20-P-A, part number 164000. The datasheet specifies a double-acting flat cylinder with 12 mm piston diameter, M3 piston rod thread, stroke range from 1 mm to 200 mm, and position detection via proximity switch. It is designed for compressed air to ISO 8573-1:2010 [7:4:4], operates from 0.16 MPa to 1 MPa, and uses elastic cushioning rings/plates at both ends. Construction materials include anodised wrought aluminium alloy housing, wrought aluminium cover, NBR and TPE-U(PU) seals, and a high-alloy stainless steel piston rod. The unit is suitable for any mounting position and is intended for compact pneumatic actuation where low profile packaging is required.
| Parameter | Value |
|---|---|
| Stroke | 1 mm ... 200 mm |
| Piston diameter | 12 mm |
| Equivalent diameter | 12 mm |
| Piston rod thread | M3 |
| Torsional backlash at piston rod +/- | 2.5 deg |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Design | Piston; Piston rod |
| Position detection | Via proximity switch |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Protection against torque/guide | Oval piston |
| Operating pressure | 0.16 MPa ... 1 MPa |
| Operating pressure | 1.6 bar ... 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Impact energy in end positions | 0.09 J |
| Max. torque for protection against torsion | 0.1 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 51 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 68 N |
| Moving mass for 0 mm stroke | 12 g |
| Additional moving mass per 10 mm stroke | 2 g |
| Additional weight per 10 mm stroke | 9 g |
| Basic weight for 0 mm stroke | 96 g |
| Type of mounting | With female thread; With accessories |
| Pneumatic connection | M5 |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR; TPE-U(PU) |
| Material housing | Anodised wrought aluminium alloy |
| Material piston seal | NBR |
| Material piston rod | High-alloy stainless steel |
Provides short-stroke, double-acting motion for compact pick-and-place mechanisms where low-profile cylinder geometry and proximity sensing are needed.
Solves space constraints while maintaining controlled bidirectional pneumatic motion and end-position feedback.
Drives mechanical stops, lifters, or indexing pins in conveyor and assembly stations that require up to 200 mm stroke and moderate force.
Solves reliable stopping and repositioning of small workpieces in tight machine envelopes.
Suitable for light clamping, locking, or fixture positioning applications where corrosion-resistant aluminum construction and stainless rod are beneficial.
Solves compact clamping with moderate force in environments needing corrosion resistance and clean pneumatic operation.
