USD 210.00

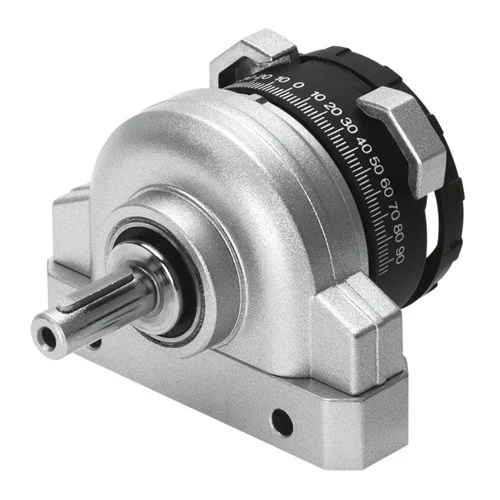

Compact pneumatic semi-rotary drive with 0-180° adjustable swivel angle and elastic cushioning for precise, gentle automation tasks.
Compact pneumatic semi-rotary drive with 0-180° adjustable swivel angle and elastic cushioning for precise, gentle automation tasks.
| Parameter | Value |
|---|---|
| Series | DSR |
| Size | 10 |
| Nominal Swivel Angle | 180° |
| Cushioning Type | P (Elastic cushioning rings/plates) |
| Material Seals | NBR |
| Pneumatic Connection | M3 |
| Ambient Temperature | -10 °C to 60 °C |
| Max. Swivel Frequency | 3 Hz (at 0.6 MPa / 6 bar / 87 psi) |
| Design | Vane |
| Mounting Position | Optional |
| Rotation Angle Adjustment Range | 0 - 180 deg |
| Cushioning Angle | 2.4 deg |
| Physical Weight (kg) | 0.1 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
Utilizing its 0-180° swivel angle and elastic cushioning, this semi-rotary drive precisely rotates small components for automated assembly tasks, ensuring gentle handling.
Accurately positions parts in confined spaces, enhancing assembly speed and consistency by eliminating manual orientation. The cushioning prevents damage to delicate items.
Provides reliable and controlled angular movement for opening and closing small ball or butterfly valves within miniature fluidic control or laboratory equipment, leveraging its M3 pneumatic connection.
Enables precise and automated flow control in space-constrained fluidic systems where consistent and accurate valve positioning is critical.
Creates a gentle flipping or diverting action for lightweight products on conveyor belts or sorting systems, utilizing the adjustable 0-180° swivel and elastic cushioning for controlled movement at up to 3 Hz.
Diverts or reorients delicate items on production lines without damage, improving sorting efficiency and reducing manual intervention in material flow.
