Name: Festo CRQS-12-10 Stainless Push-In Connector 12mm to 10mm - INOSAKI
SKU: Festo-130654
Price: 72.39 USD
Availability: InStock

Technical Overview

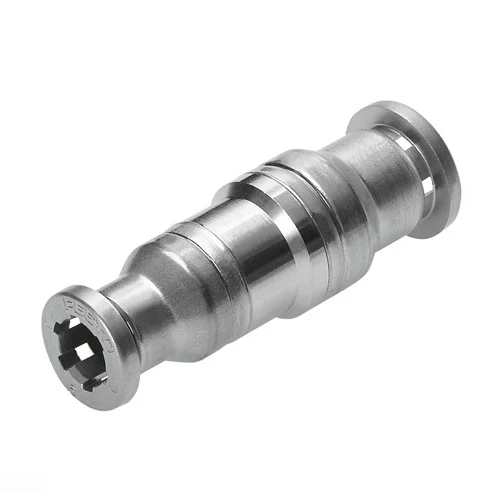

The Festo 130654 (CRQS-12-10) is a high-performance, straight push-in reducing connector designed for demanding industrial pneumatic applications. Manufactured entirely from high-alloy stainless steel and equipped with an FPM tubing seal, it ensures maximum chemical and corrosion resistance (CRC 4). This fitting employs a robust push-pull principle to provide secure, tool-free connections between 12 mm and 10 mm outer diameter pneumatic tubing. It confidently operates across a broad pressure range from deep vacuum (-0.95 bar) up to 10 bar, and handles extreme ambient temperatures from -15°C to 120°C. Fully compliant with food industry standards and suitable for compressed air or water media, it is an optimal choice for cleanrooms, harsh washdown environments, and automated packaging lines.

Key Features

Connects12mmto10mmouterdiameterpneumatictubingsmoothlyandsecurely[1.1]
Advanced push-pull principle enables quick, leak-free installation without external tools
Constructed from high-alloy stainless steel for maximum protection against harsh chemicals and washdown operations
FPM tubing seal resists thermal degradation in environments ranging from -15°C to +120°C
Supports continuous vacuum and positive pressure applications safely from -0.95 bar to 10 bar
Fully food-grade compliant (VDMA24364-B1/B2-L) and capable of handling compressed air and water

Technical Specification Matrix

Parameter	Value
Pneumatic Connection 1	For tubing O.D. 12 mm
Pneumatic Connection 2	For tubing O.D. 10 mm
Nominal Size	6.6 mm
Operating Pressure	-0.95 to 10 bar (-0.095 to 1 MPa)
Ambient Temperature	-15 to 120 °C
Corrosion Resistance Class (CRC)	4 (Very high corrosion stress)
Housing/Clamp Material	High-alloy stainless steel
Tubing Seal Material	FPM
Operating Medium	Compressed air (ISO 8573-1:2010 [7:-:-]), Water
Design	Straight shape, Push-pull principle

Industrial Applications

1. Food & Beverage Washdown Packaging Lines

In highly sanitized packaging lines requiring frequent washdowns with caustic cleaning agents, standard brass or polymer fittings corrode rapidly. This stainless steel fitting maintains seal integrity and resists severe chemical wear.

Problem Solved

Eliminates the risk of contamination and frequent maintenance downtime by utilizing extreme corrosion-resistant (CRC 4) materials compatible with aggressive food-grade cleaning environments.

Washdown environmentsFood-grade complianceCRC 4 corrosion resistanceHigh-alloy stainless steel

2. High-Temperature Industrial Pneumatic Systems

Manufacturing facilities utilizing pneumatics near furnaces, boilers, or high-friction machinery experience elevated temperatures that destroy standard polyurethane seals. The integrated FPM seal guarantees thermal endurance up to 120°C.

Problem Solved

Prevents critical pressure drops and pneumatic leaks caused by thermal degradation of seals during continuous high-heat manufacturing processes.

120°C ambient temperatureFPM tubing sealThermal resistanceHigh-temperature pneumatics

3. Precision Vacuum Pick-and-Place Automation

Pharmaceutical and semiconductor assembly demands ultra-clean, leak-proof pneumatic connections for delicate robotic suction grippers. This connector firmly bridges 12mm and 10mm tubing lines while handling deep vacuum down to -0.95 bar.

Problem Solved

Ensures an airtight, contamination-free connection during rapid automated vacuum grip-and-release cycles in demanding cleanroom workflows.

-0.95 bar vacuumPick-and-place roboticsPush-pull principleCleanroom pneumatics
