Compact vacuum generator with ejector pulse. 0.7mm Laval nozzle, 85% max vacuum, 2-10 bar operating pressure, and M7 threaded vacuum connection.

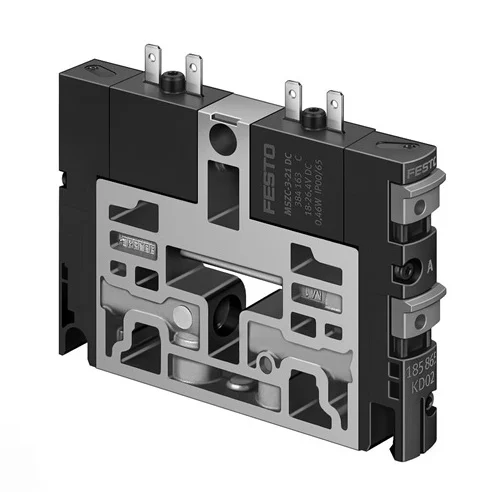

The 185865 (CPV10-M1H-VI70-2GLS-M7) is a specialized vacuum generator block designed for integration into the Compact Performance (CPV) valve terminal system. Fabricated from robust die-cast aluminum, it features a 0.7 mm nominal Laval nozzle that delivers high vacuum characteristics reaching up to 85% maximum vacuum. Designed for dynamic pneumatic control environments, this module operates across a compressed air pressure range of 2 to 10 bar. It includes an ejector pulse function for rapid part release, utilizing an M7 threaded vacuum connection and sub-base pneumatic ports. It is highly optimized for lightweight automated systems, weighing merely 25 grams.
| Parameter | Value |
|---|---|
| Nominal Size, Laval Nozzle | 0.7 mm [1.6] |
| Ejector Characteristic | High vacuum |
| Operating Pressure | 2 bar to 10 bar |
| Maximum Vacuum | 85% |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Temperature Range | 0 °C to 50 °C |
| Pneumatic Connection 1 & 3 | Sub-base |
| Vacuum Connection | M7 |
| Housing Material | Die-cast aluminum |
Drives end-of-arm tooling suction cups in electronics manufacturing or light assembly, providing rapid and reliable component gripping [1.4].
Eliminates slow release times by utilizing the integrated ejector pulse function, ensuring fast, repeatable drop-offs without residual vacuum sticking.
Generates localized vacuum for carton erection, blister pack handling, or film feeding in automated packaging machinery.
Replaces bulky centralized vacuum pumps with compact, localized 25g sub-base modules, minimizing manifold volumes and reducing pneumatic lag.
Secures non-porous workpieces during automated assembly or light machining operations using pneumatically driven vacuum generation.
Provides consistent 85% vacuum depth across a wide 2-10 bar supply pressure range, ensuring stable holding force even during plant air fluctuations.
