USD 222.39
High-density 3/2-way normally closed monostable pneumatic valve. Compact 18mm width, 1300 l/min flow rate, 2.5-10 bar operating pressure, and 24V DC coil.

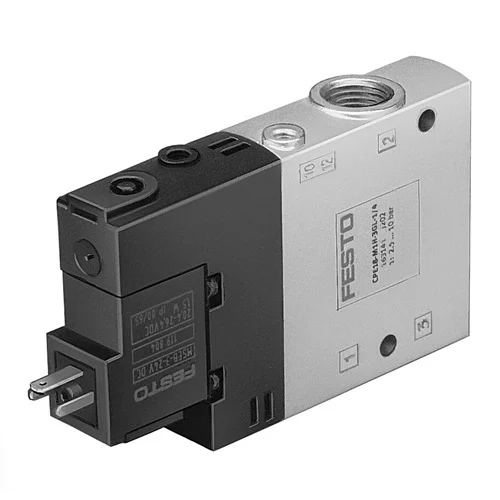

The Festo 163141 (CPE18-M1H-3GL-1/4) is an industrial-grade 3/2-way, normally closed (NC), monostable directional control solenoid valve. Designed with a robust piston spool structure and pneumatic spring reset, it delivers a high standard nominal flow rate of 1300 l/min within a highly compact 18mm width. Engineered for heavy-duty pneumatic automation, it accommodates an operating pressure range of 2.5 to 10 bar. The unit features a 24V DC electrically actuated control coil with an EN 175301-803 Type C plug pattern, G1/4 threaded pneumatic connections, and soft NBR seals housed within a durable die-cast aluminum casing. Certified to IP65, this piloted control valve provides optimal safety, rapid response times, and exceptional lifecycle endurance for demanding pneumatic circuits.
| Parameter | Value |
|---|---|
| Valve Function | 3/2-way, closed, monostable |
| Type of Actuation | Electric |
| Design Structure | Piston Spool |
| Type of Reset | Pneumatic spring |
| Width | 18 mm |
| Standard Nominal Flow Rate | 1300 l/min |
| Operating Pressure | 2.5 to 10 bar |
| Operating Voltage | 24 V DC |
| Pneumatic Working Port | G1/4 |
| Pilot Air / Exhaust Ports (12/82) | M5 |
| Electrical Connection | Plug Pattern Type C (EN 175301-803) |
| Manual Override | Non-detenting |
| Protection Class | IP65 |
| Ambient / Media Temperature | -5 °C to 50 °C |
| Housing Material | Die-cast Aluminum |
| Seals Material | NBR |
Utilizes the high 1300 l/min flow rate and rapid response to drive single-acting pneumatic cylinders that rapidly divert packages off a main conveyor line onto designated sorting chutes.
Ensures precise timing and rapid cylinder actuation in high-speed sorting without causing package collisions, backed by a highly reliable pneumatic spring return.
Acts as the primary directional control valve for heavy-duty pneumatic clamps holding metal workpieces during CNC machining processes, operating securely within the 2.5 to 10 bar pressure range.
Maintains strong and consistent clamping force while ensuring safe, fail-closed operation if electrical power drops out, thanks to the normally closed monostable spool design.
Electrically actuates pneumatic dampers in a factory dust extraction network, opening the 3/2-way valve when a local machine turns on to extract dust and shutting it automatically when inactive.
Reduces energy consumption by centralizing exhaust draft only where needed. The IP65 rating protects the internal solenoid mechanisms in highly dusty industrial environments.
