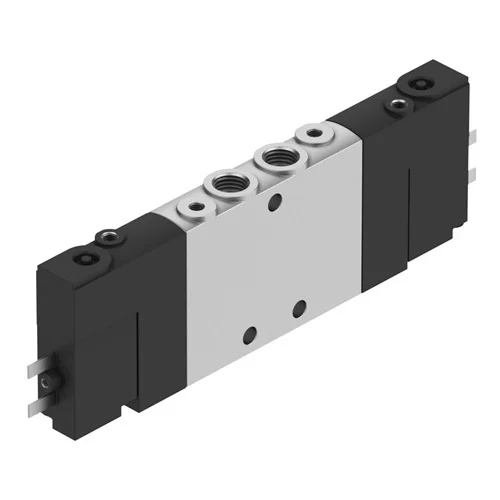

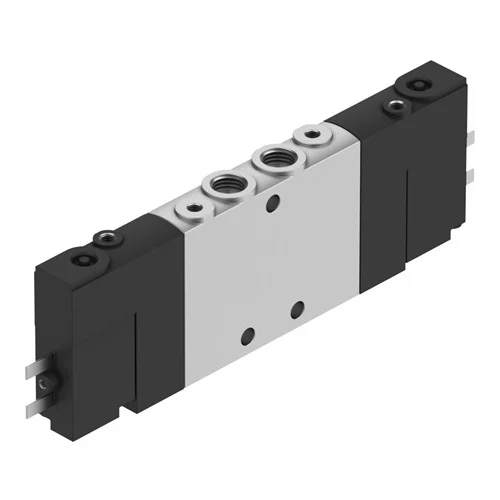

5/3-way closed pneumatic valve, 24 V DC coil, 350 l/min, M7 ports, IP65, internal pilot supply, 10 mm width.
Electrically actuated 5/3-way closed pneumatic solenoid valve with 10 mm construction width, 24 V DC coil, 350 l/min nominal flow, M7 ports, and IP65 protection with plug socket. The valve uses a piston gate design, internal pilot supply, mechanical spring return to mid-position on logic 0, and is specified for compressed air service with 3 to 8 bar operating pressure.
| Parameter | Value |
|---|---|
| Valve function | 5/3-way, closed |
| Type of actuation | Electrical |
| Construction width | 10 mm |
| Standard nominal flow rate | 350 l/min |
| Pneumatic working port | M7 |
| Operating voltage | 24 V DC |
| Operating pressure | 0.3 MPa...0.8 MPa (3 bar...8 bar) |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 with plug socket to IEC 60529 |
| Nominal size | 4 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting via accessory / Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Flow direction | Non-reversible |
| Switching time off | 20 ms |
| Switching time on | 16 ms |
| Duty cycle | 100% in conjunction with holding current reduction |
| Characteristic coil data | 24 V DC: 1.28 W |
| Permissible voltage fluctuations | -15% / +10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Media temperature | -5 °C...50 °C |
| Ambient temperature | -5 °C...50 °C |
| Product weight | 68 g |
| Electrical connection | 2-pin |
| Type of mounting | With through-hole |
| Pilot exhaust port 82 | M3 |
| Pilot exhaust port 84 | M3 |
| Pilot air port 12 | M3 |
| Pilot air port 14 | M3 |
| Pneumatic connection, port 1 | M7 |
| Pneumatic connection, port 2 | M7 |
| Pneumatic connection, port 3 | M7 |
| Pneumatic connection, port 4 | M7 |
| Pneumatic connection, port 5 | M7 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class | CRC 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
Ideal for compact OEM equipment needing a 5/3 closed center valve in a 10 mm body with 24 V DC control and 350 l/min flow.
Provides reliable mid-position hold and directional switching where space is limited and pneumatic lines must remain stable.
Suitable for installations requiring IP65 protection and plug-socket connectivity in dusty or splash-prone machine environments.
Reduces ingress risk and improves serviceability in harsh plant-floor conditions.
Matches actuator circuits operating between 3 and 8 bar with internal pilot supply and non-reversible porting for stable pneumatic logic.
Supports dependable actuator sequencing without requiring external pilot air plumbing.
