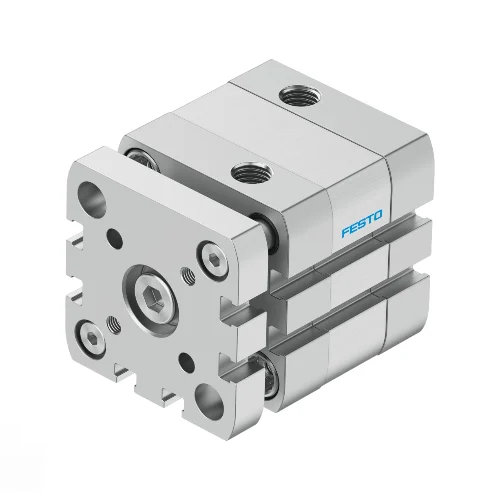

Compact double-acting 40mm pneumatic cylinder (ISO 21287) with torsion guide, ATEX certification, and up to 10 bar operating pressure. G1/8 pneumatic ports.
Compact double-acting 40mm pneumatic cylinder (ISO 21287) with torsion guide, ATEX certification, and up to 10 bar operating pressure. G1/8 pneumatic ports.
| Parameter | Value |
|---|---|
| Piston diameter | 40 mm |
| Stroke | 5 mm ... 300 mm |
| Based on norm | ISO 21287 |
| Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1 bar ... 10 bar (0.1 MPa ... 1 MPa) |
| Mode of operation | Double-acting |
| Explosion prevention and protection | Zone 1, 2, 21, 22 (ATEX/UKEX) |
| Explosive ambient temperature | -20°C <= Ta <= +60°C |
| Ambient temperature | -20 °C ... 120 °C |
| Theoretical force at 6 bar, advancing | 754 N |
| Theoretical force at 6 bar, retracting | 686 N |
| Pneumatic connection | G1/8 |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Piston rod material | High-alloy steel |
| Seals material | TPE-U(PUR) |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
Deploying the cylinder to control valves and diverters in chemical processing plants where volatile gases and combustible dust are present.
Standard pneumatic cylinders pose ignition risks in explosive atmospheres. This cylinder is highly certified for ATEX Zones 1/2/21/22, eliminating ignition hazards.
Operating pusher mechanisms or lifting platforms that exert twisting forces on the cylinder rod during the extension phase.
Standard cylindrical rods can rotate or fail under off-center loading. The built-in guide rod with yoke guarantees high resistance to torsion, keeping payloads perfectly aligned.
Integrating the actuator into dense packaging machinery to press or clamp materials where axial installation space is extremely limited.
Provides up to 754 N of advancing force in a highly compressed form factor that adheres strictly to ISO 21287 sizing.
