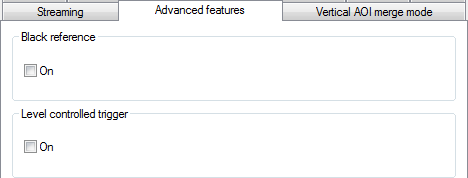

Fig. 138: uEye properties - Advanced features (1)

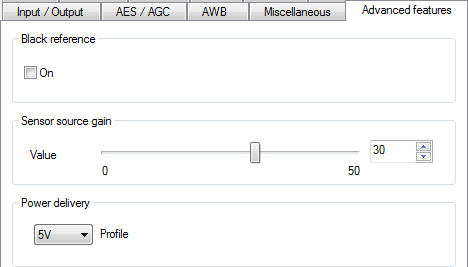

Fig. 139: uEye properties - Advanced features (2)
Black reference
•On
Enables the display of the black level reference, see is_DeviceFeature().
|
The black level reference is currently supported by the following models: •UI-300x (reference rows) •UI-304x/UI-504x (reference rows) •UI-306x (reference rows) •UI-308x (reference rows) •UI-309x (reference rows) •UI-313x/UI-513x (reference rows) •UI-314x/UI-514x (reference rows) •UI-316x (reference rows) •UI-318x (reference rows) •UI-320x/UI-520x (reference rows) •UI-326x/UI-526x (reference rows) •UI-329x/UI-529x (reference rows) •UI-336x/UI-536x (reference columns) •UI-337x/UI-537x (reference columns) •UI-386x/UI-586x (reference rows) •UI-388x/UI-588x (reference rows) |
•Value
Sets the value for the sensor source gain, see is_DeviceFeature().
|
The analog sensor source gain is currently supported by the following models: •UI-300x •UI-304x/UI-504x •UI-307x •UI-308x •UI-309x •UI-313x/UI-513x •UI-314x/UI-514x •UI-316x •UI-318x •UI-320x/UI-520x •UI-327x/UI-527x •UI-328x/UI-528x •UI-329x/UI-529x •UI-336x/UI-536x •UI-337x/UI-537x •UI-386x/UI-586x •UI-388x/UI-588x |
Power Delivery (uEye LE USB 3.1 Gen 1 and uEye SE USB 3.1 Gen 1 only)
Via the profile, you define which voltage is available on the camera's I/O connector for peripheral devices (see is_PowerDelivery()). Note that the profile has to be set again after a reconnect.
Level controlled trigger
•On
Enables the use of the level controlled trigger, see is_DeviceFeature(). By using the level-controlled trigger, you can control the exposure time directly via the duration of the trigger signal.
|
The level controlled trigger cannot be used in combination with the software trigger mode, trigger prescaler, or the IDS line scan ("AOI merge mode"). |
|
The level controlled trigger is currently supported by the following models: •UI-300x •UI-304x •UI-306x •UI-307x •UI-308x •UI-309x •UI-320x/UI-520x •UI-326x/UI-526x •UI-327x/UI-527x •UI-328x/UI-528x •UI-329x/UI-529x Note that the level-controlled trigger is not supported by the uEye LE camera families. |
|
Hint: Note that from driver version 4.80 on, you can only enable or disable the internal image memory via the functions in the IDS Camera Manager. |
Resetting the parameters
Click on the "Default" button to reset all parameters to the model-specific defaults.
