The following tolerances apply to the drawings in the "Mechanical specifications" chapter: •Length and angles: ISO 2768-f •Shape and position: ISO 2768-H |

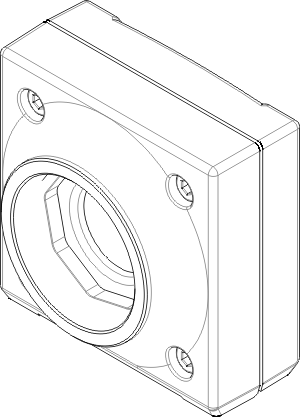

 Fig. 495: USB uEye ML (from top) |

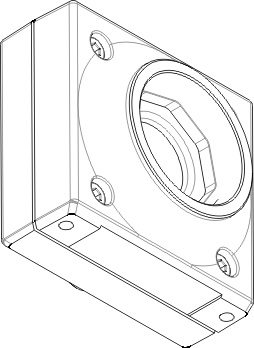

 Fig. 496: USB uEye ML (from bottom) |
Lens mount |
Enclosure IP code |
Weight |
|---|---|---|
CS-Mount |
IP 30 |
37 g |
 |
NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the USB and/or I/O cable from the camera. |

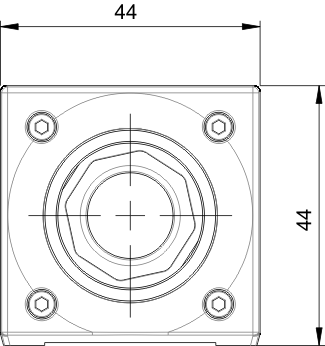

 Fig. 497: USB uEye ML - front view |

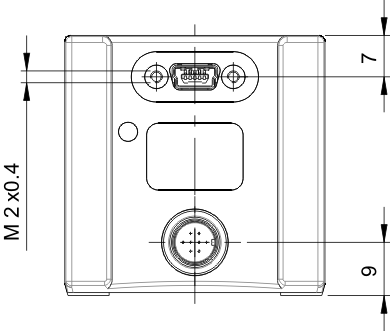

 Fig. 498: USB uEye ML - back view |

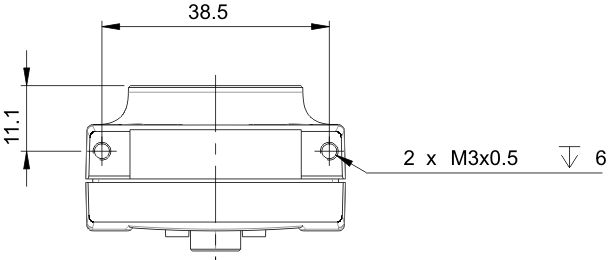

 Fig. 499: USB uEye ML - bottom view |

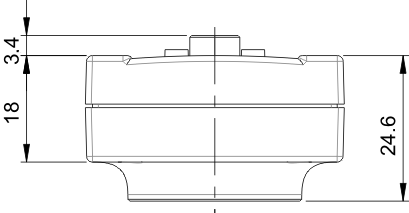

 Fig. 500: USB uEye ML - top view |
 Fig. 501: USB uEye ML - side view |
