NOTICE! Make sure to avoid mechanical or electrical damage of the printed circuit board or its connections. Do not touch the printed circuit board while it is powered. Always hold the board by the edges to avoid the risk of electrostatic discharge damage. |
|
NOTICE! The camera connectors may be damaged if you install or remove the camera with plugged in cables. Therefore, first unplug the USB and/or I/O cable from the camera. |
 |
The applicable tolerances for the overall dimensions of PCBs are higher than the tolerances for housing dimensions. |

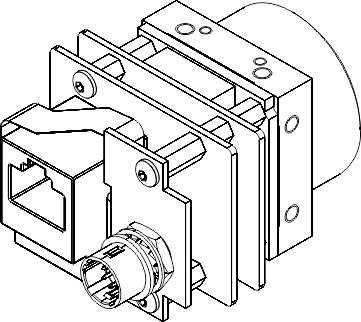

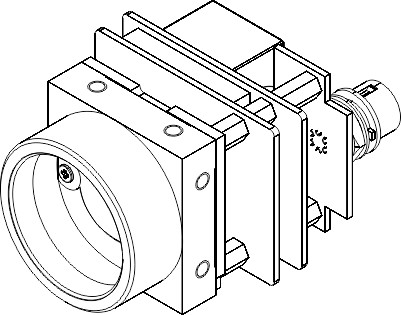

 Fig. 681: GigE uEye SE OEM version with CMOS - 3D view |
 |
CMOS/CCD cameras

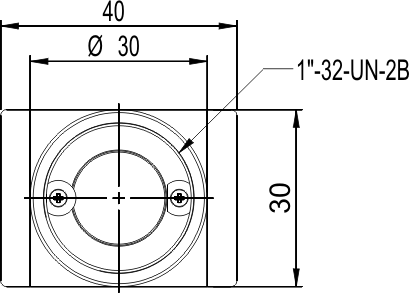

 Fig. 682: GigE uEye SE OEM version - Front view |

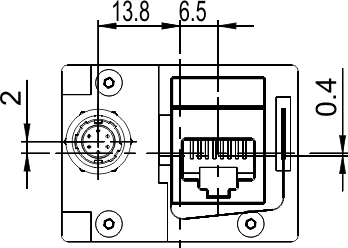

 Fig. 683: GigE uEye SE OEM version - Rear view |
CCD cameras

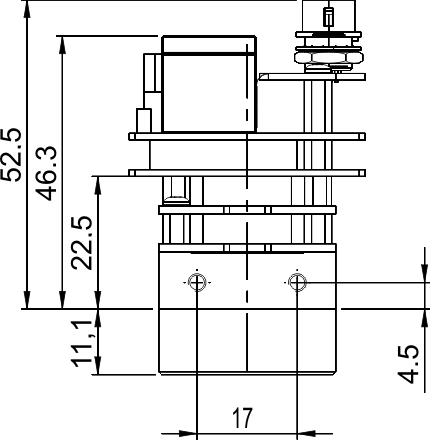

 Fig. 684: GigE uEye SE OEM version - Top view (CCD) |

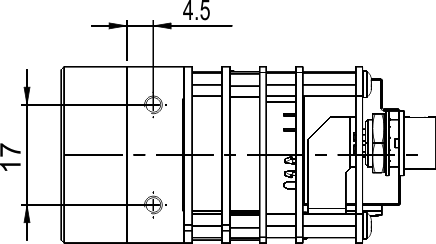

 Fig. 685: GigE uEye SE OEM version - Side view (CCD) |
CMOS cameras

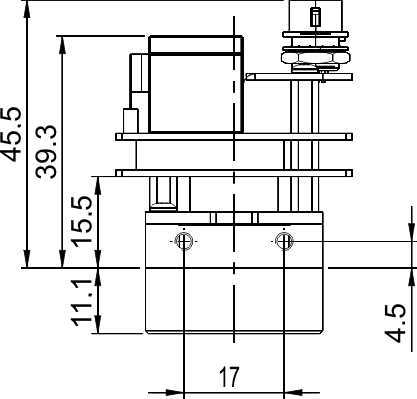

 Fig. 686: GigE uEye SE OEM version - Top view (CMOS) |

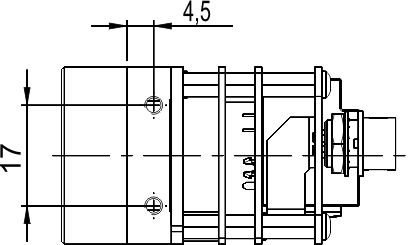

 Fig. 687: GigE uEye SE OEM version - Side view (CMOS) |
